Air curtain means to supply an artificially laminar stream of air across a doorway or the other opening to make a barrier from top fringe of the door upto finished ground floor or bottom of the door. Its air pressure could also be low, medium and high. Its major purpose is to stay apart internal environment to external. It don’t let exchange the interior and external air temperature. It also repel dust particles, flying insects, prevents heat transfer.
Air Curtain segregates the exchange of warm and cold air. It also acts as an invisible adjoining areas. During the summer season, internal cold air is maintain with none loss of air or air leakage comfortable environment creates at economical cost. It also save the energy and stop the loss of energy .
An ideal performance of air curtain is to maintain the layer with same velocity and speed from top to bottom and left to right of the door. There are many other brands except Airtechz -China which break or reduce the air pressure , velocity/speed of air after one or two feet from point of release of air.
Air curtains creates a jet of high-velocity air directed across a door opening, providing a protective air shield. The air shield minimizes the transfer of warmth, moisture, dust, fumes and insects through the doorway. The Air Curtain fan adds K.E. to the air, providing resistance to the penetration of unwanted air or particles.

Also read:

The air curtains of Airtechz China have proved its performance its air throw isn’t only as per required velocity and speed but it creates complete air layer from top to bottom and round about in smooth way.

Airtechz Company Information:

Guangzhou Airtechz Co.,Ltd. was found within the year of 2011,is a professional manufacturer and supplier of air
curtain and related climate products like industrial fans, air cooler and other ventilation products. Airtechz
provides a large range of air curtain for various premises, and export products to quite 80 countries and
places.
Airtechz’s goal is to became a name of excellent craft and reliable products producer in ventilation industry; Its business philosophy is to establish long term win-win cooperative partnership with our international distributor, traders by providing superior products and professional supports.

Basic flow A Series:















Compact air curtain adopts metal cover is designed with advanced fire resistance. additionally it’s easy installation and simple maintenance.
Optimized fan wheel provides stable & even air flow. it’s large air volume and low noise performance.
Adopted remote control or touch switch, it’s able to adjust high and low air velocity. Suitable for application in cafeteria, bakery, lounge , restaurants, retail shop, sales outlet, sports center, etc.
Installation height: 2.5m – 3m.















TECHNICAL PARAMETERS of A SERIES OF  Airtechz:

Model	Length	Dimension	Frequency	Voltage	Motor Power	Air velocity(m/s)		Air volume	Noise   (dB)		Net weight
	(feet)	(mm)	(Hz)	(V~)	(W)	HI	LO	(m3/h)	HI	LO	(kgs)
A-90	3 feet	900×187×190	50/60	220-240	160	11	9	1550	57	53	9.10
A-120	4 feet	1200×187×190	50/60	220-240	200	11	9	2130	58	54	11.50
A-150	5 feet	1500×187×190	50/60	220-240	230	11	9	2650	59	55	14.30
A-180	6 feet	1800×187×190	50/60	220-240	300	11	9	3200	60	57	17.50

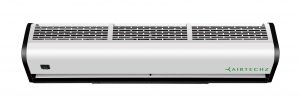

Basic flow B Series:

Piano shaped air curtain adopts metal cover is designed with fire resistance. additionally , it’s easy installation and simple maintenance.
The optimized fan wheel provides stable and smooth air flow. it has large air volume and low noise performance.
Motor is supplied with 3-year warranty period.
Adopting remote controller to regulate high and low air velocity.
Suitable for application in cafeteria, bakery, waiting area, restaurants, retail shop, department store, sports center so on.

TECHNICAL PARAMETERS  OF B SERIES OF AIRTECHZ:

Model	Length	Dimension	Frequency	Voltage	Motor Power	Air velocity(m/s)		Air volume	Noise(dB)		Net weight
	(feet)	(mm)	(Hz)	(V~)	(W)	HI	LO	(m3/h)	HI	LO	(kg)
B-90	3 feet	910×178×176	50/60	220-240	75	11	10	1350	56	53	7.3
B-120	4 feet	1205×178×176	50/60	220-240	135	11	10	1880	57	55	11
B-150	5 feet	1500×178×176	50/60	220-240	150	11	10	2520	58	55	13.5
B-180	6 feet	1800×178×176	50/60	220-240	180	11	10	3250	60	56	15.5



APPLICATIONS:

The air curtains are enormously needed in Following both Commercial and industrial sectors:
1.Pharmceutical, Hospitals and operational theatres, blood testing labs
2. Laboratories especially BSL III Labs for CORVID Test
3. Food processing plants, bakery, sweets, dairies, Bottling Plants ,Oil & Ghee industrial sector
4. Hotels and restaurant schools, cafeterias .
5. Cold storage.
6.Atomic energy and defence.
7 Textiles sectors, Garments Factories,
8. Supermarkets
A lot of other sector also.
You may please contact for any query to :

Exclusive Distributor of AIRTECHZ:

Cell & WhatsApp: 0322 5200003; Landline:  +9204236365113

e-mail: hvac@orientmarketing.com.pk,     mafzalsipra@gmail.com

  Website:          www.orientmarketing.com.pk
